Correlated Events

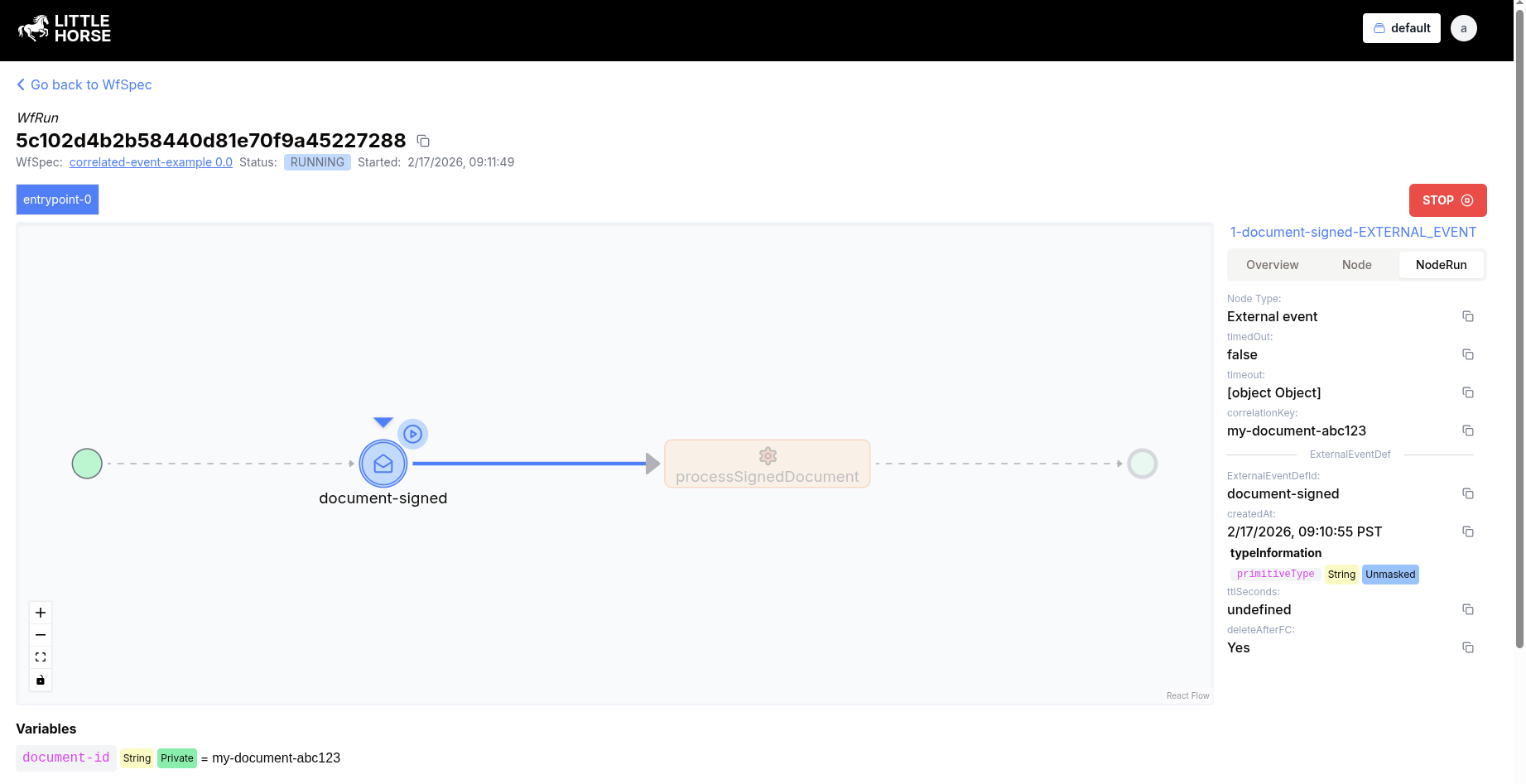

A WfRun waiting for a Correlated Event

When using External Events, the caller must know the WfRunId of the workflow they want to signal. But what if you don't know the WfRunId? What if all you have is some external identifier—like a DocuSign document ID or a Stripe payment ID—and you want to signal whichever WfRun is waiting for that identifier?

That's exactly what CorrelatedEvents solve. Instead of posting an ExternalEvent directly to a WfRunId, you post a CorrelatedEvent with a correlation key, and LittleHorse automatically routes it to any WfRun that is waiting for an event with that same key.

Common use-cases for CorrelatedEvents include:

• A DocuSign webhook fires when a document is signed—you know the document ID but not the WfRunId.
• A Stripe webhook fires when a payment succeeds—you know the payment intent ID but not the WfRunId.
• A third-party system completes an async operation and calls back with its own internal ID.
• You want a single external event to be delivered to multiple WfRuns that share the same correlation key.

Concepts

When working with Correlated Events, you need to understand three API objects:

1. ExternalEventDef: metadata that defines a type of External Event. To use correlated events, the ExternalEventDef must include a CorrelatedEventConfig.
2. CorrelatedEvent: a piece of data posted into LittleHorse that is not yet associated with any specific WfRun. It is a precursor to one or more ExternalEvents.
3. ExternalEvent: the actual event delivered to a WfRun. LittleHorse creates ExternalEvents automatically when a CorrelatedEvent matches a waiting WfRun.

How It Works

The flow for correlated events is:

1. In your WfSpec, you call waitForEvent() with a correlation ID (a variable whose value is determined at runtime).
2. When a WfRun reaches that node, LittleHorse registers a correlation marker using the value of that variable as the correlation key.
3. Someone (your webhook handler, a microservice, a Kafka Connector, etc.) posts a CorrelatedEvent with a matching key.
4. LittleHorse matches the CorrelatedEvent to the waiting WfRun, creates an ExternalEvent, and the workflow continues.

tip

If the CorrelatedEvent is posted before the WfRun reaches the ExternalEventNode, LittleHorse will still match it when the WfRun arrives at that node. The ordering doesn't matter.

ExternalEvent vs CorrelatedEvent

	ExternalEvent	CorrelatedEvent
Caller needs to know	The WfRunId	Only the correlation key
Targets	Exactly one WfRun	Any WfRun(s) waiting for that key
Posted via	rpc PutExternalEvent	rpc PutCorrelatedEvent
Can signal multiple WfRuns	No	Yes (unless deleteAfterFirstCorrelation is set)

CorrelatedEventConfig

When registering an ExternalEventDef that supports correlated events, you must provide a CorrelatedEventConfig. This configuration controls:

• deleteAfterFirstCorrelation: If true, the CorrelatedEvent is deleted after it matches with one WfRun. This also implies that only one WfRun can ever be correlated to this event. This is useful for one-to-one scenarios like "wait for this specific document to be signed."
• ttlSeconds (optional): If set, CorrelatedEvents are automatically cleaned up after the specified time-to-live.

In Practice

To use Correlated Events in your workflows, you need to:

1. Create an ExternalEventDef with a CorrelatedEventConfig.
2. Create a WfSpec that waits for an event using a correlation ID.
3. Run the WfSpec and pass in the correlation key as a variable.
4. Post a CorrelatedEvent with the matching key to complete the workflow.

tip

For the sake of simplicity, every code sample in this document can be compiled and run on its own as a single file. You can even mix-and-match between different languages—try doing one step in Java and another in Python!

If you do want to follow along with the code here, we recommend checking out our installation docs to:

1. Install lhctl.
2. Set up a LittleHorse Kernel for local development.
3. Add the dependency for your SDK of choice.

Write the Workflow

In this section, we will create a TaskDef and a WfSpec (which will also register the ExternalEventDef with correlated event support). The example we will build is a workflow in which:

1. The workflow takes a document-id as input.
2. It waits for an ExternalEvent of type document-signed using the document-id as the correlation key.
3. When the event arrives, it passes the document ID and the signer name (from the event payload) to a processSignedDocument task, which simulates processing the signed document.

Background: The TaskDef

Let's use a TaskDef called processSignedDocument, which takes a document ID and signer name, and simulates processing the signed document. This could represent updating a database, sending a notification, or any other business logic you want to perform when a document is signed. Run the following code in a terminal to register the TaskDef and run your Task Worker. Keep it running for the duration of this exercise so that the worker can execute TaskRuns once you run your WfRun.

Java

package io.littlehorse.quickstart;

import io.littlehorse.sdk.common.config.LHConfig;
import io.littlehorse.sdk.worker.LHTaskMethod;
import io.littlehorse.sdk.worker.LHTaskWorker;


class DocumentProcessor {
  @LHTaskMethod("processSignedDocument")
  public String processSignedDocument(String documentId, String signerName) {
    String result = "Document " + documentId + " was signed by " + signerName + ". Processing complete.";
    System.out.println(result);
    return result;
  }
}

public class Main {

    public static void main(String[] args) {
        LHConfig config = new LHConfig();

        LHTaskWorker worker = new LHTaskWorker(new DocumentProcessor(), "processSignedDocument", config);
        Runtime.getRuntime().addShutdownHook(new Thread(worker::close));

        worker.registerTaskDef();
        worker.start();
    }
}

Python

import asyncio
import littlehorse
from littlehorse import create_task_def
from littlehorse.worker import LHTaskWorker
from littlehorse.config import LHConfig

config = LHConfig()

async def process_signed_document(document_id: str, signer_name: str) -> str:
  result = f"Document {document_id} was signed by {signer_name}. Processing complete."
  print(result)
  return result

async def main():
  worker = LHTaskWorker(process_signed_document, "processSignedDocument", config)
  await littlehorse.start(worker)

if __name__ == "__main__":
  create_task_def(process_signed_document, "processSignedDocument", config)
  asyncio.run(main())

Go

package main

import (
    "fmt"
    "github.com/littlehorse-enterprises/littlehorse/sdk-go/littlehorse"
)


func ProcessSignedDocument(documentId string, signerName string) string {
  result := fmt.Sprintf("Document %s was signed by %s. Processing complete.", documentId, signerName)
  fmt.Println(result)
  return result
}

func main() {
    config := littlehorse.NewConfigFromEnv()
    worker, _ := littlehorse.NewTaskWorker(config, ProcessSignedDocument, "processSignedDocument")
    worker.RegisterTaskDef()
    worker.Start()
}

C#

using LittleHorse.Sdk;
using LittleHorse.Sdk.Worker;

namespace Quickstart;


class DocumentProcessor
{
  [LHTaskMethod("processSignedDocument")]
  public string ProcessSignedDocument(string documentId, string signerName)
  {
    string result = $"Document {documentId} was signed by {signerName}. Processing complete.";
    Console.WriteLine(result);
    return result;
  }
}

public class Program
{
    static void Main(string[] args)
    {
        var config = new LHConfig();
        var worker = new LHTaskWorker<DocumentProcessor>(new DocumentProcessor(), "processSignedDocument", config);
        worker.RegisterTaskDef();
        AppDomain.CurrentDomain.ProcessExit += (sender, e) => { worker.Close(); };
        worker.Start();
    }
}

Registering the WfSpec

Now let's register the WfSpec. There are three key differences from a regular ExternalEvent workflow:

1. .withCorrelationId() tells LittleHorse to use the value of a variable as the correlation key.
2. .withCorrelatedEventConfig() configures how correlation behaves (e.g., whether to delete after the first match).
3. .registeredAs() tells LittleHorse to automatically register the ExternalEventDef (with the CorrelatedEventConfig) when the WfSpec is registered—no separate registration step needed.

Java

package io.littlehorse.quickstart;

import io.littlehorse.sdk.common.config.LHConfig;
import io.littlehorse.sdk.common.proto.CorrelatedEventConfig;
import io.littlehorse.sdk.wfsdk.WfRunVariable;
import io.littlehorse.sdk.wfsdk.Workflow;

public class Main {

    public static final String EVENT_NAME = "document-signed";

    public static void main(String[] args) {
        LHConfig config = new LHConfig();

        Workflow workflow = Workflow.newWorkflow("correlated-event-example", wf -> {
            // Declare a variable for the correlation key
            WfRunVariable documentId = wf.declareStr("document-id");

            // Wait for the correlated event and get the signer name
            var signerName = wf.waitForEvent(EVENT_NAME)
              .withCorrelationId(documentId)
              .withCorrelatedEventConfig(CorrelatedEventConfig.newBuilder()
                .setDeleteAfterFirstCorrelation(true)
                .build())
              .registeredAs(String.class);

            // Call the task with both documentId and signer name
            wf.execute("processSignedDocument", documentId, signerName);
        });

        workflow.registerWfSpec(config.getBlockingStub());
    }
}

Python

from littlehorse.workflow import Workflow, WorkflowThread
from littlehorse import create_workflow_spec
from littlehorse.config import LHConfig
from littlehorse.model import CorrelatedEventConfig

EVENT_NAME = "document-signed"

def get_workflow() -> Workflow:

    def wf_logic(wf: WorkflowThread) -> None:
      # Declare a variable for the correlation key
      document_id = wf.declare_str("document-id")

      # Wait for the correlated event and get the signer name
      signer_name = wf.wait_for_event(
        EVENT_NAME,
        correlation_id=document_id,
        correlated_event_config=CorrelatedEventConfig(
          delete_after_first_correlation=True,
        ),
        return_type=str,
      )

      # Call the task with both document_id and signer_name
      wf.execute("processSignedDocument", document_id, signer_name)

    return Workflow("correlated-event-example", wf_logic)

if __name__ == "__main__":
    config = LHConfig()
    create_workflow_spec(get_workflow(), config)

Go

package main

import (
    "context"
    "log"
    "github.com/littlehorse-enterprises/littlehorse/sdk-go/lhproto"
    "github.com/littlehorse-enterprises/littlehorse/sdk-go/littlehorse"
)

const EventName = "document-signed"

func WfLogic(wf *littlehorse.WorkflowThread) {
  // Declare a variable for the correlation key
  documentId := wf.DeclareStr("document-id")

  // Wait for the correlated event and get the signer name
  signerName := wf.WaitForEvent(EventName).
    SetCorrelationId(documentId).
    WithCorrelatedEventConfig(&lhproto.CorrelatedEventConfig{
      DeleteAfterFirstCorrelation: true,
    }).
    RegisteredAs(lhproto.VariableType_STR)

  // Call the task with both documentId and signerName
  wf.Execute("processSignedDocument", documentId, signerName)
}

func main() {
    config := littlehorse.NewConfigFromEnv()
    client, _ := config.GetGrpcClient()

    wf := littlehorse.NewWorkflow(WfLogic, "correlated-event-example")

    putWfSpecReq, _ := wf.Compile()
    _, err := (*client).PutWfSpec(context.Background(), putWfSpecReq)
    if err != nil {
        log.Fatal(err)
    }
}

C#

using LittleHorse.Sdk;
using LittleHorse.Sdk.Common.Proto;
using LittleHorse.Sdk.Workflow.Spec;

namespace Quickstart;

public class Program
{
    public static void WfLogic(WorkflowThread wf)
    {
      // Declare a variable for the correlation key
      WfRunVariable documentId = wf.DeclareStr("document-id");

      // Wait for the correlated event and get the signer name
      var signerName = wf.WaitForEvent("document-signed")
        .WithCorrelationId(documentId)
        .WithCorrelatedEventConfig(new CorrelatedEventConfig
        {
          DeleteAfterFirstCorrelation = true,
        })
        .RegisteredAs(typeof(string));

      // Call the task with both documentId and signerName
      wf.Execute("processSignedDocument", documentId, signerName);
    }

    static void Main(string[] args)
    {
        var config = new LHConfig();
        var workflow = new Workflow("correlated-event-example", WfLogic);
        workflow.RegisterWfSpec(config.GetGrpcClientInstance());
    }
}

There are three key calls here:

• .withCorrelationId(documentId) (or SetCorrelationId / correlation_id= depending on your language) tells LittleHorse: "when this WfRun reaches this node, register a correlation marker using the runtime value of documentId."
• .withCorrelatedEventConfig(...) configures correlation behavior—here, deleteAfterFirstCorrelation means each CorrelatedEvent is consumed after it matches with one WfRun.
• .registeredAs(String.class) (or RegisteredAs / return_type= depending on your language) tells LittleHorse to automatically register the ExternalEventDef (including the CorrelatedEventConfig) when the WfSpec is registered. No separate PutExternalEventDef call is needed!

Run the Workflow

Now that we've registered our TaskDef and WfSpec (which also registered the ExternalEventDef), let's run the workflow and complete it with a CorrelatedEvent.

Start a WfRun

Start the WfRun using lhctl, passing in the document-id variable:

lhctl run correlated-event-example document-id my-document-abc123

Make note of the WfRunId from the output. If we look at our WfRun in the dashboard, we'll see that it's waiting on the ExternalEventNode — just like a regular External Event workflow.

Posting a CorrelatedEvent

Here's where the magic happens. Instead of calling rpc PutExternalEvent with the WfRunId, we call rpc PutCorrelatedEvent with just the correlation key and the ExternalEventDef name. We don't need to know the WfRunId at all!

With lhctl:

lhctl put correlatedEvent my-document-abc123 document-signed STR "Obi-Wan Kenobi"

We provide the correlation key (my-document-abc123), the ExternalEventDef name (document-signed), the type of the payload, and the payload itself.

Using the SDK's:

Java

package io.littlehorse.quickstart;

import io.littlehorse.sdk.common.LHLibUtil;
import io.littlehorse.sdk.common.config.LHConfig;
import io.littlehorse.sdk.common.proto.CorrelatedEvent;
import io.littlehorse.sdk.common.proto.ExternalEventDefId;
import io.littlehorse.sdk.common.proto.PutCorrelatedEventRequest;
import io.littlehorse.sdk.common.proto.LittleHorseGrpc.LittleHorseBlockingStub;

public class Main {

    public static void main(String[] args) {
        LHConfig config = new LHConfig();
        LittleHorseBlockingStub client = config.getBlockingStub();

        PutCorrelatedEventRequest request = PutCorrelatedEventRequest.newBuilder()
                .setKey("my-document-abc123")
                .setExternalEventDefId(ExternalEventDefId.newBuilder()
                        .setName("document-signed"))
                .setContent(LHLibUtil.objToVarVal("Obi-Wan Kenobi"))
                .build();

        CorrelatedEvent result = client.putCorrelatedEvent(request);
        System.out.println(LHLibUtil.protoToJson(result));
    }
}

Python

from littlehorse.config import LHConfig
from littlehorse.model import (
    ExternalEventDefId,
    PutCorrelatedEventRequest,
    VariableValue,
)

if __name__ == "__main__":
    config = LHConfig()
    client = config.stub()

    request = PutCorrelatedEventRequest(
        key="my-document-abc123",
        external_event_def_id=ExternalEventDefId(name="document-signed"),
        content=VariableValue(str="Obi-Wan Kenobi"),
    )

    result = client.PutCorrelatedEvent(request)
    print(result)

Go

package main

import (
    "context"
    "fmt"
    "github.com/littlehorse-enterprises/littlehorse/sdk-go/lhproto"
    "github.com/littlehorse-enterprises/littlehorse/sdk-go/littlehorse"
)

func main() {
    config := littlehorse.NewConfigFromEnv()
    client, _ := config.GetGrpcClient()

    result, _ := (*client).PutCorrelatedEvent(context.Background(),
        &lhproto.PutCorrelatedEventRequest{
            Key: "my-document-abc123",
            ExternalEventDefId: &lhproto.ExternalEventDefId{
                Name: "document-signed",
            },
            Content: &lhproto.VariableValue{
                Value: &lhproto.VariableValue_Str{
                    Str: "Obi-Wan Kenobi",
                },
            },
        },
    )

    fmt.Println("CorrelatedEvent:", result)
}

C#

using LittleHorse.Sdk;
using LittleHorse.Sdk.Common.Proto;
using LittleHorse.Sdk.Helper;

namespace Quickstart;

public class Program
{
    static void Main(string[] args)
    {
        var config = new LHConfig();
        var client = config.GetGrpcClientInstance();

        var request = new PutCorrelatedEventRequest
        {
            Key = "my-document-abc123",
            ExternalEventDefId = new ExternalEventDefId
            {
                Name = "document-signed"
            },
            Content = LHMappingHelper.ObjectToVariableValue("Obi-Wan Kenobi")
        };

        CorrelatedEvent result = client.PutCorrelatedEvent(request);
        Console.WriteLine(LHMappingHelper.ProtoToJson(result));
    }
}

Once the CorrelatedEvent is posted, LittleHorse will:

1. Find the WfRun that is waiting for a document-signed event with the correlation key my-document-abc123.
2. Automatically create an ExternalEvent on that WfRun.
3. The WfRun will continue executing—in this case, the payload "Obi-Wan Kenobi" will flow into the next node.

You can inspect the CorrelatedEvent with lhctl:

lhctl get correlatedEvent my-document-abc123 document-signed

Viewing the Correlated Event

You can retrieve a CorrelatedEvent to see its status and which ExternalEvents it has created:

lhctl get correlatedEvent my-document-abc123 document-signed

The output will look something like:

{
  "id": {
    "key": "my-document-abc123",
    "externalEventDefId": {
      "name": "document-signed"
    }
  },
  "createdAt": "2025-02-13T19:17:00.000Z",
  "content": {
    "str": "Obi-Wan Kenobi"
  },
  "externalEvents": [
    {
      "wfRunId": {
        "id": "c6e0b59775f947979a7c16d6313c1a9d"
      },
      "externalEventDefId": {
        "name": "document-signed"
      },
      "guid": "..."
    }
  ]
}

The externalEvents list shows which ExternalEvents were created from this CorrelatedEvent.

Advanced Usage

Event-Before-Workflow (Race Condition Handling)

A powerful feature of CorrelatedEvents is that the event can arrive before the WfRun reaches the ExternalEventNode. LittleHorse handles this gracefully:

1. You post a CorrelatedEvent with key abc123.
2. Later, a WfRun arrives at a node waiting for key abc123.
3. LittleHorse immediately matches them and creates the ExternalEvent.

This eliminates the race condition that would otherwise occur if you had to ensure the workflow was waiting before posting the event.

One-to-Many Correlation

If deleteAfterFirstCorrelation is set to false, a single CorrelatedEvent can match with multiple WfRuns. Each WfRun that waits on the same correlation key will receive its own ExternalEvent created from the same CorrelatedEvent.

Masking the Correlation Key

If your correlation key contains sensitive data (e.g., a social security number or email address), you can mask it so that it is not visible in the LittleHorse Dashboard or API responses:

Java

wf.waitForEvent(EVENT_NAME).withCorrelationId(documentId, true);

Python

wf.wait_for_event(EVENT_NAME, correlation_id=document_id, mask_correlation_id=True)

Go

wf.WaitForEvent(EventName).SetCorrelationId(documentId).MaskCorrelationId(true)

C#

wf.WaitForEvent("document-signed").WithCorrelationId(documentId, true);

Deleting a CorrelatedEvent

You can delete a CorrelatedEvent if it is no longer needed:

lhctl delete correlatedEvent my-document-abc123 document-signed

Further Resources

Congrats on learning how to use CorrelatedEvents! Here are some related topics to explore:

• External Events for the simpler case where you know the WfRunId.
• Timeouts on your ExternalEventNodes with the .timeout() method.
• Interrupts for handling ExternalEvents that interrupt a running ThreadRun.
